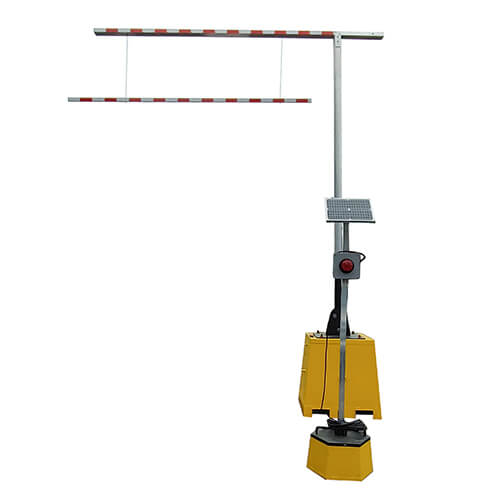

Rotating height limitation module – Aluminium – 144×150 – STANDARD IZ

Truck height limiter module at 109.5” high and 144” wide, rotating, installed on a modified concrete base with the addition of an 8′ steel sleeve SKU: STD-BAS-BET-3500 (not included), for a total height of 198″, including:
– One 4″ x .125″ dia aluminum post 150″ high;
– Steel post of 3.5” dia and 150” long with ball bearing and teflon collar for rotation of the aluminum post;
– Maneuvering bar with magnetic positioning and stopping system;

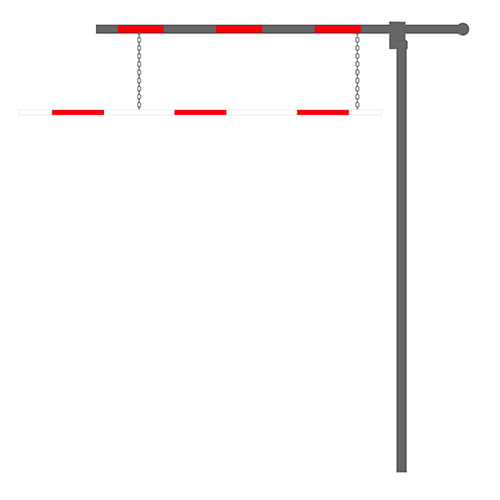

– Rectangular aluminum gallows 4×1, 144” long, welded on aluminum post, with 120” overhang and 24” for counterweight;
– Aluminum height restriction bar, 3″ long and 120″ wide, with white and red ultra-reflective vinyl visuals assembled with 2 chains under the stem;
